圖像質量分析軟件IQ-Analyzer

圖像質量分析軟件IQ-Analyzer 專業影像分析軟件，符合ISO標準，可以對客觀測試進行分析，包括分辨率測試，畸變測試，色彩測試，均勻性測試，動態范圍，畸變等等測試項目，可以配合測試圖卡進行對應的分析。

圖像質量分析軟件IQ-Analyzer 是一款專業的圖像分析軟件。主要是用于各類camera的圖像質量分析。可以用于分析圖像的MTF分辨率、畸變、顏色還原性、動態范圍、周邊光亮、灰度等級等等攝像頭各項參數進行客觀分析，可以有效的分析攝像頭的參數性能進行完整評

價。

IQ-Analyzer X版本軟件分為專業版與免費版，可通過我司官網申請下載免費版本軟件體驗。iQ-Analyzer-X免費版本下載申請網址，填寫申請信息后可獲取下載鏈接（請復制鏈接在瀏覽器中打開）：

https://www.image-engineering.de/requests/iq-analyzer-x-free-download

或者聯系姜先生18620350396

推薦采用德國Image- Engineering 公司的測試分析軟件IQ-ANALYZER進行分析，其軟件在國內外各大公司都有采用，配合其高質量的測試圖卡，可以很好的對圖像進行準確的分析，增強了測試的準確定和精度。

圖像質量分析軟件IQ-Analyzer 測試的各項具體參數：

Module	Features
OECF	? Support of various grey scale targets including TE240, TE241, TE259, TE264, etc.
	? Determination of OECF according to ISO 14524 (camera OECF)
	? Calculation of ISO Speed values (sat, 10, and 40) based on ISO 12232
	? Determination of fixed pattern noise, total noise, and temporal noise based on ISO 15739
	? Visual noise analysis based on ISO 15739 (including L, u, v* components)
	? Dynamic range determination based on ISO 15739 (f-stops, densities)
	? Output range calculation (Digital values)
	? White balance accuracy by calculation the distances for R, G, and B curves
	? LCH based analysis on greyscale
	? Waveform style analysis

COLOR	? Support of various charts like x-rite color checker, color checker SG, Color checker DC, IT8, TE188, TE226, and TE106
	? Selectable color spaces for source images
	? Whitepoint and white point adaptation settings
	? Delta E analysis including colored encoding of results
	? Comparison window reference values to sample
	? Comparison of two cameras by making one camera the reference

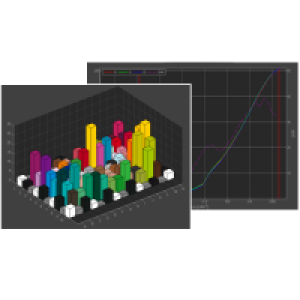

	? Delta E 3D bar diagram according CIE 15
	? Yxy diagram
	? Lab diagram CIE 15
RESOLUTION	? Support of charts like TE253, TE265, TE261, TE42, QA62
	? SFR measurement based on slanted edges according to ISO 12233
	? MTF measurement based on sinusoidal Siemens stars according to ISO 12233 (revision)
	? SFR measurements based on bitonal (black and white) Siemens stars
	? Power spectrum measurement based on dead leaves target
	? Power spectrum measurement based on white noise target
	? Kurtosis measurement based on white noise target
	? Shading correction for SFR and MTF measurements
	? Distortion correction for slanted edge measurement with polynominal fit of line spread function
	? Distortion correction for MTF measurement with Siemens star by border detection
	? Edge profile for slanted edge analysis
	? Frequency values for selectable modulation threshold values including limiting resolution at 10% Modulation
	? Automatic Nyquist frequency detection and implementation in graphical results
	? Integration of area below the MTF/SFR curve with and without contrast sensitivity of the human eye (viewing conditions) in percent of the ideal MTF (1 until Nyquist then 0).
	? Division of stars into sectors and separate analysis for visualization of orientation specific image processing
	? Each star can be analyzed separately
	? Stars can be grouped into image heights
	? Various options for linearization of the images
	? Overview graph for quick check of overall performance (esp. centering) for Siemens star charts
	? Analysis of luminance channel or each color channel separately including analysis of colored targets
DISTORTON	? Support of various targets like TE174, TE183, TE 251, TE260
	? Determination of TV distortion (EBU)
	? SMIA distortion analysis
	? LGD (lens geometric distortion) analysis according to CPIQ
	? Representation in several graphs like grid, 2D contour, and quiver plot
	? Polynomial fit as input for automatic compensation
	? Lateral chromatic aberration as distances for cross or dot location in color channels (G-B, G-R)
	? Indicator for longitudinal chromatic aberration
	? Robust automatic detection of crosses or dots
	? Semi automatic detection mode for highly distorted images

HISTOGRAM	? Dead / defect pixel determination based on white, grey or black image
	? Selectable tonal range for outliers
	? Calculated tonal range based on sigma selection
	? Linear and logarithmic histogram visualization
	? Numeric results for outliers in pixels and clusters
	? Pixel map for defect pixels
SHADING	? Support of various targets like TE42, TE255 and all targets with uniform patches at several locations
	? Support of OECF for linearization
	? Graphical results in 3D, contour and linear plots
	? Polynomial fit for compensation algorithms
	? Results in f-stops, L* values, Y values
	? Color shading analysis based on digital numbers G-B, G-R
	? Color shading based on chroma C*a,b value according to CIE 15
	? Color shading based on Delta E_ab according to CIE 15
	? Visual noise evaluation (to visualize in camera shading compensation) according to ISO 15739
	? Signal to noise evaluation in dB
42	With one single chart (TE42 'Forty Two') OECF (Opto Electronic Conversion Function), dynamic range, resolution, shading, distortion, lateral chromatic aberration, color reproduction, and kurtosis parameters can be measured and analysed according to ISO standards.
